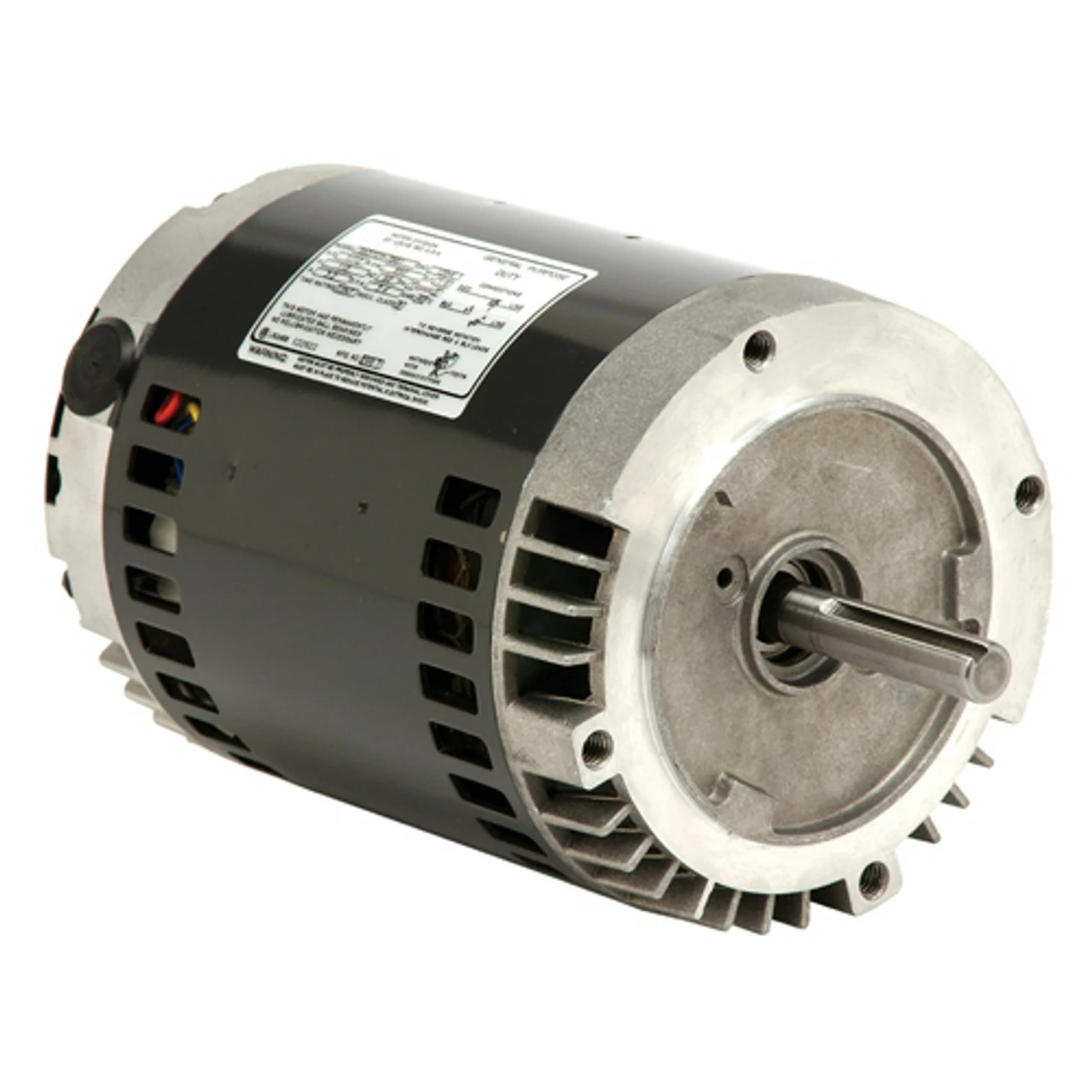

1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor
Original price was: $351.00.$96.99Current price is: $96.99.
- 7 days return and exchange
- Online customer care, always here for you.
- 7 Days of Hassle-Free Returns
- The quality solution for all your needs.
- 1/3 hp 850 RPM (1 speed), 9.0 amps 115V Volts 60 Hz Split Phase Motor
- 5.6″ Dia. Frame, Rolled Steel, Keyed Shaft 5.8″ Diameter x 2 3/8″
- Service Factor = 1.35, Overload Protection: Auto
- C-Face Mount, Ball Bearings, Class B Insulation, Reversible Rotation
- 1 Year Manufacture Warranty

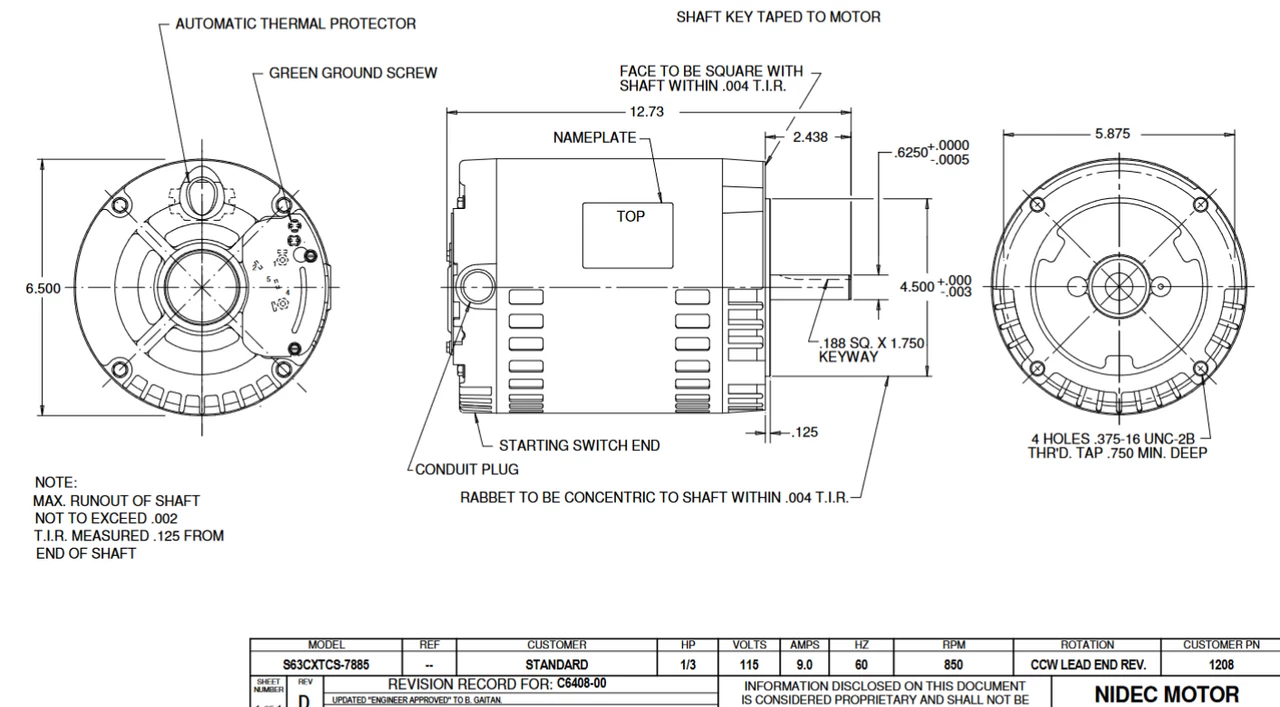

Direct drive blower motor having a C-Face mount. Wiring diagram on motor name plate. ODPAO = Open Drip-Proof Air Over, S063TCS7885012B
Be the first to review “1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor”
Related products
HVAC Motors & Draft Inducers
X013 Marathon 1/4 Hp 115V 1625 RPM (3 Speed) OPAO 48Y Frame Blower Motor
Marathon/Leeson Jet Pump Motors
H439 Marathon 1/3 Hp 2-Compartment Jet Pump Motor 3600 RPM 115V ODP 56C Frame (no Base)
Marathon/Leeson Jet Pump Motors
C1087 Marathon 1/3 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56J Frame (no Base)
Air Condenser Fan Motor
X444 Marathon 3/4 Hp 208-230V 1075 RPM OPAO Shaft Down 48Z Frame Condenser Fan Motor
HVAC Motors & Draft Inducers
X019 Marathon 1/3 Hp 277V 1075 RPM (3 Speed) OPAO 48Y Frame Blower Motor
HVAC Motors & Draft Inducers
X601 Marathon 1/3 Hp (1 Speed) 115/208-230V 1800 RPM ODP 56Z Frame PSC Resilient Base Motor
Air Condenser Fan Motor
X469 Marathon 3/4 Hp 208-230V 1075 RPM TENV 48Y Frame Condenser Fan Motor
HVAC Motors & Draft Inducers

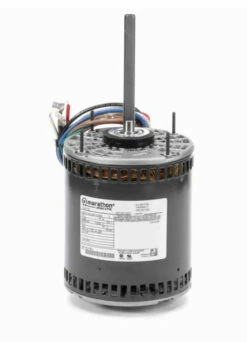

X023 Marathon 1 Hp 230V 1075 RPM (3 Speed) OPAO 48Y Frame Blower Motor
