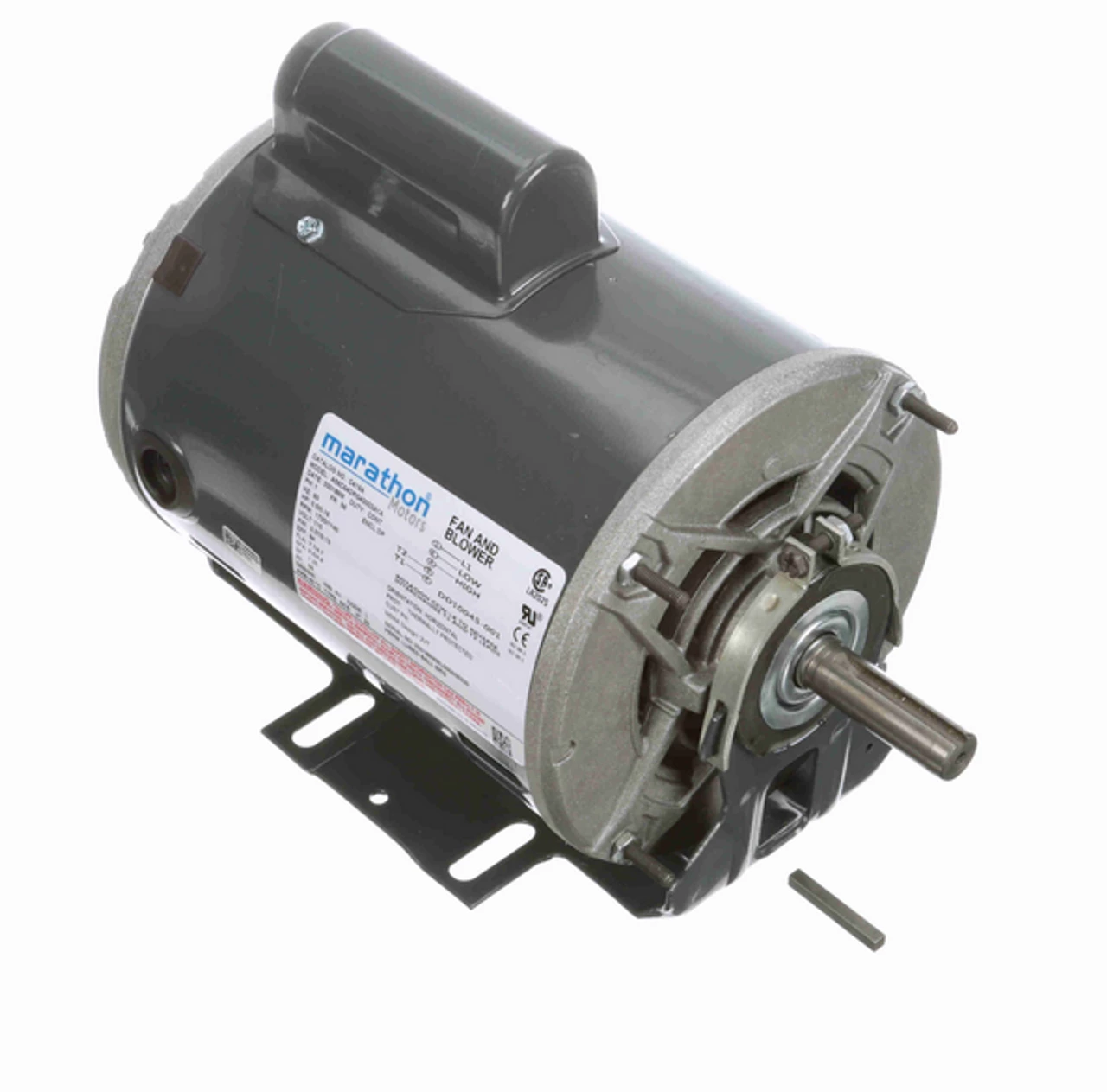

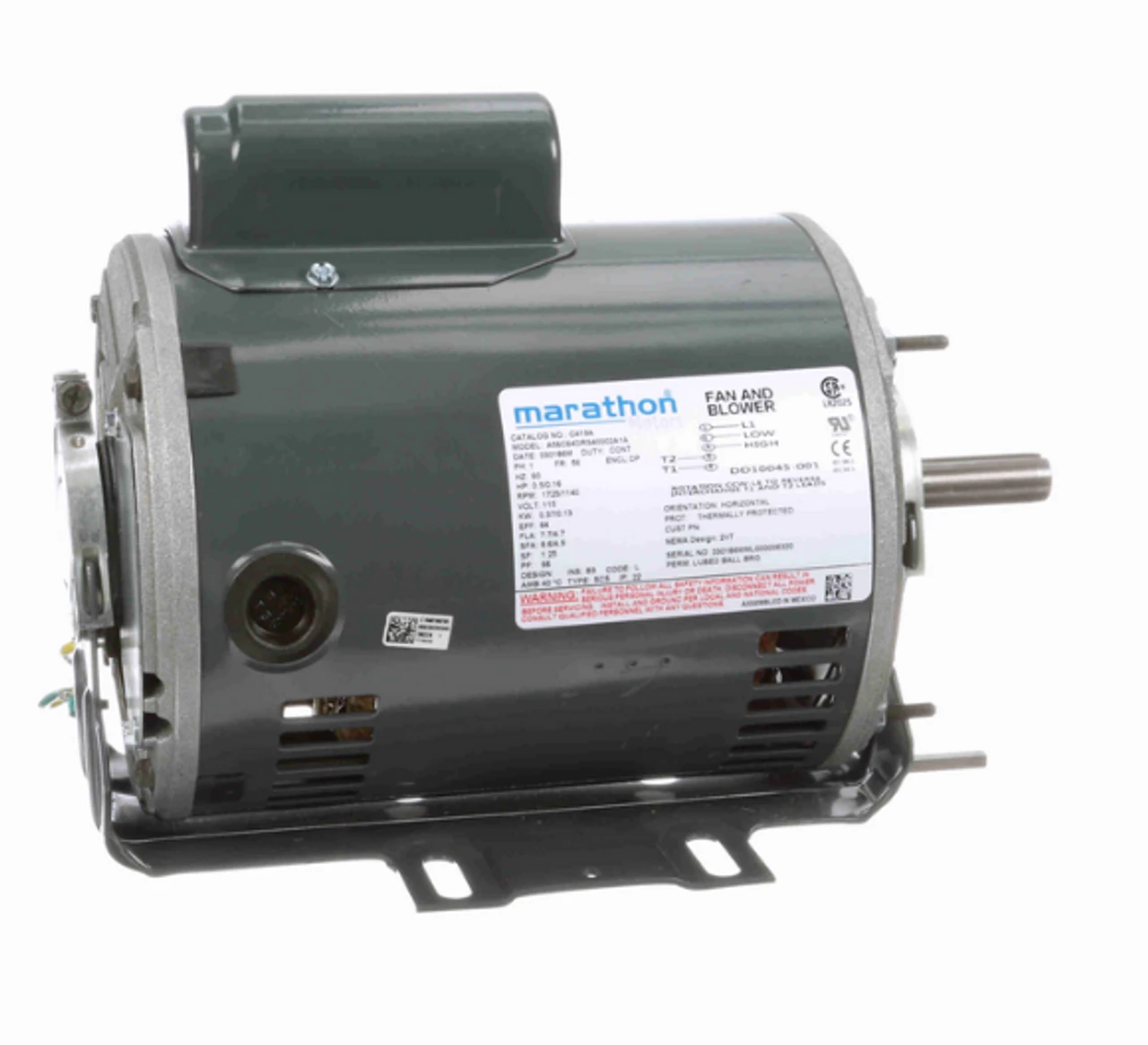

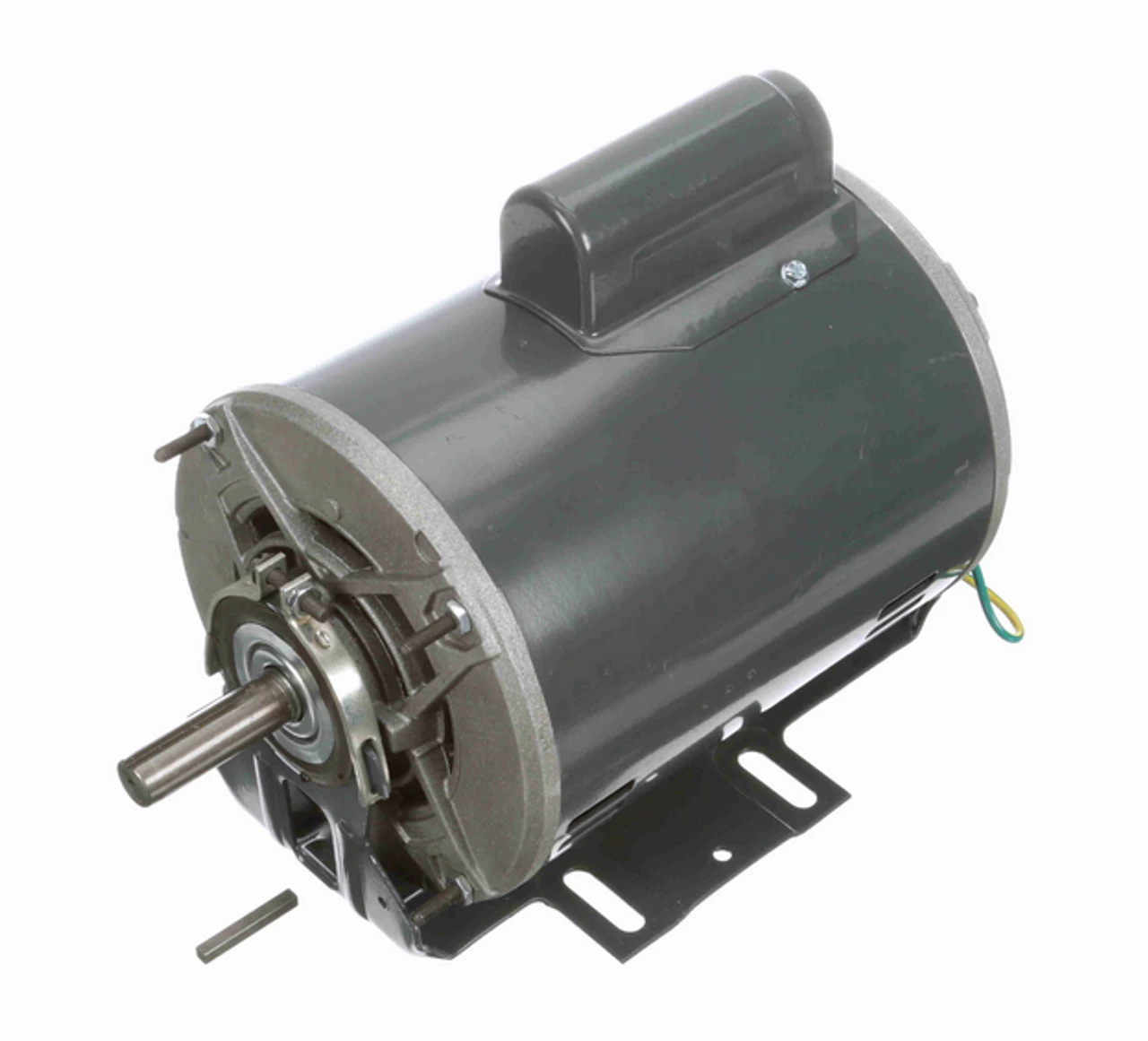

C419A Marathon 1/2 HP 1800/1200 RPM 2-Speed 115V 56 Frame ODP 1-Phase Blower Motor

C419A Marathon 1/2 HP 1800/1200 RPM 2-Speed 115V 56 Frame ODP 1-Phase Blower Motor - Image 2

C419A Marathon 1/2 HP 1800/1200 RPM 2-Speed 115V 56 Frame ODP 1-Phase Blower Motor - Image 3

C419A Marathon 1/2 HP 1800/1200 RPM 2-Speed 115V 56 Frame ODP 1-Phase Blower Motor - Image 4

C419A Marathon 1/2 HP 1800/1200 RPM 2-Speed 115V 56 Frame ODP 1-Phase Blower Motor

Original price was: $308.00.Current price is: $98.99.

SKU: ZWXLY 1698670202 Categories: HVAC Motors & Draft Inducers, Ventilation Direct Drive Blower Motors Tag: Marathon

7 days return and exchange
Online customer care, always here for you.
7 Days of Hassle-Free Returns
The quality solution for all your needs.

Description
Reviews (0)

1/2 hp 1800/1200 RPM 2 Speed, 7.7/4.7 amps, 115 Volts, 60 Hz, Capacitor Start Single Phase

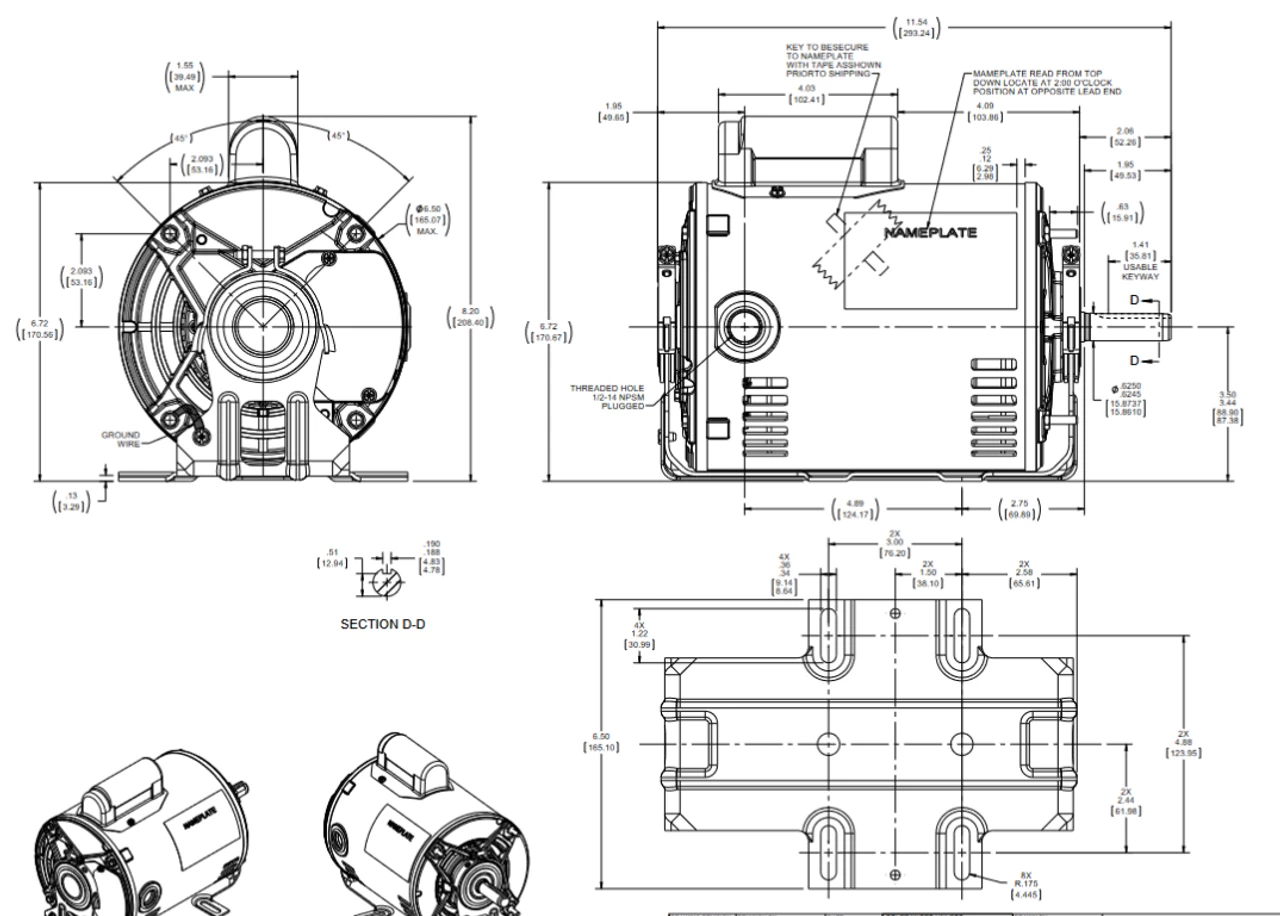

NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 2″ long
Service Factor: 1.25 – Overload Protection = Auto
Reversible, Rigid Base, Ball Bearings, Class B Insulation
1 Year Manufacture Warranty

Direct drive blower motor. Wiring diagram on motor name plate. ODP = Open Drip Proof. 056C64DRS40002A1

Can replace Century motor C532V1
