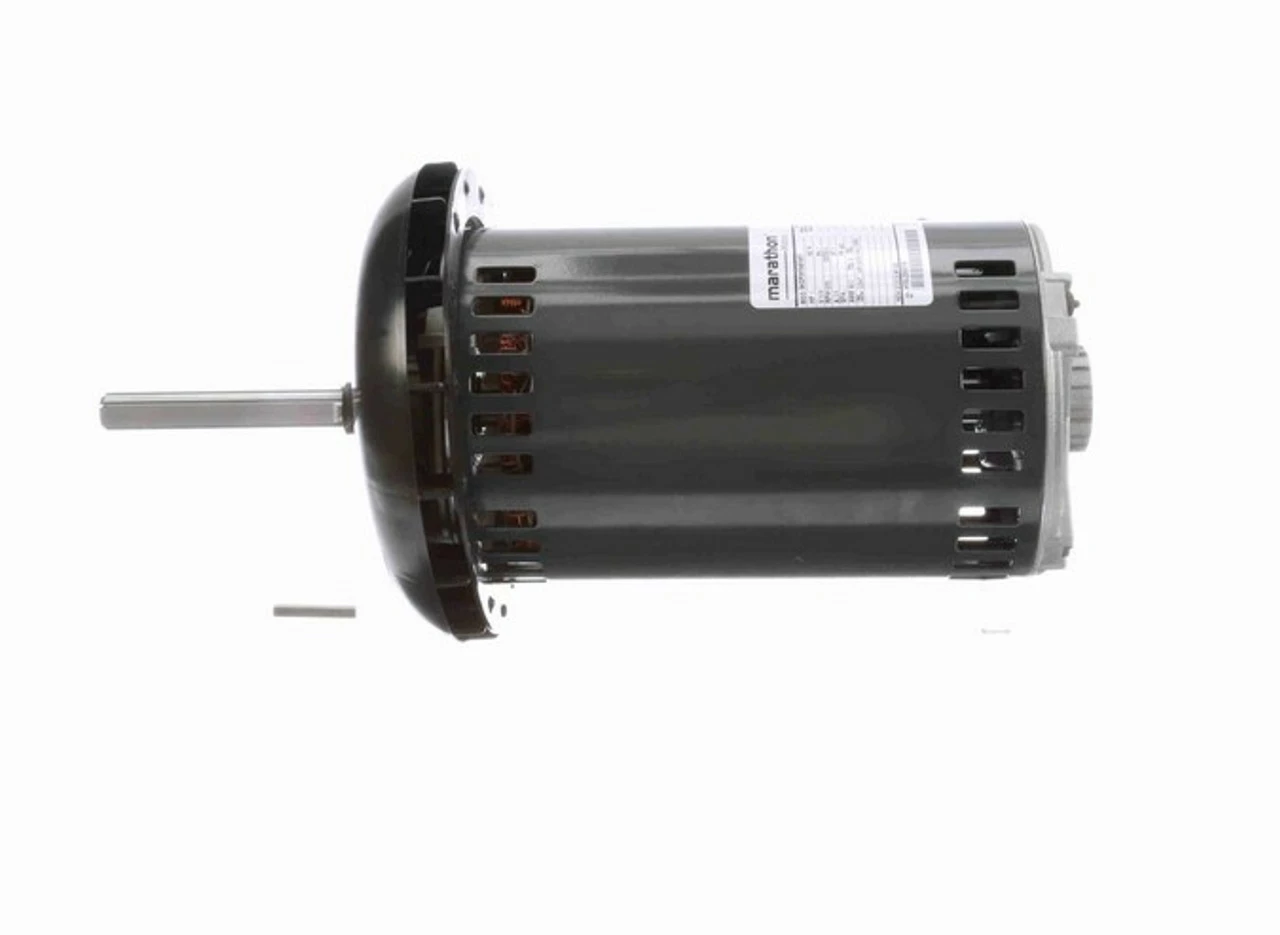

P198 Marathon 1 1/2 Hp 575V 1075 RPM OPAO 48Z Frame Canopy Condenser Fan Motor
Original price was: $346.00.$97.99Current price is: $97.99.
- 7 days return and exchange
- Online customer care, always here for you.
- 7 Days of Hassle-Free Returns
- The quality solution for all your needs.
- 1 1/2 hp 1075 RPM, 3.5 amps, 575 Volts 60 Hz, Permanent Split Capacitor (PSC)

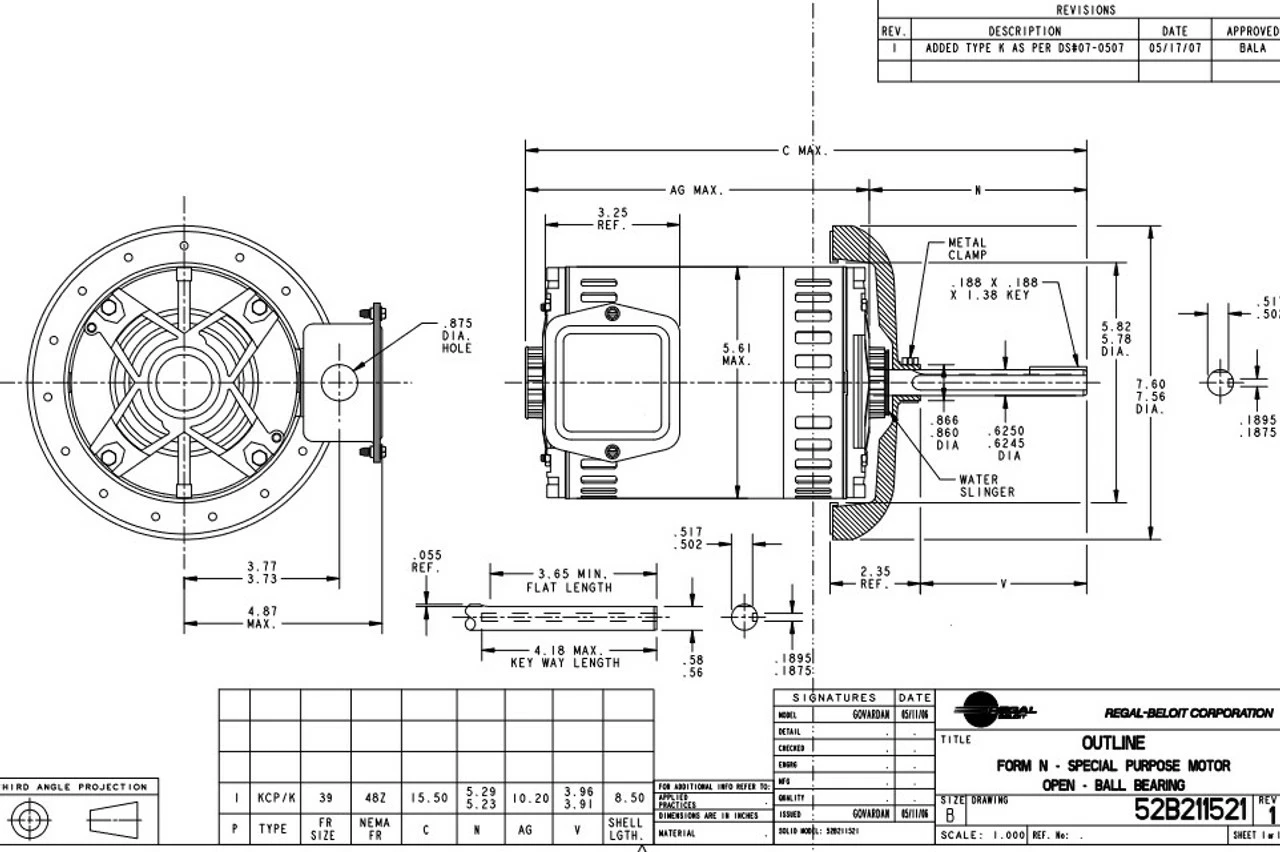

- NEMA 48Z Frame Keyed Shaft 5/8″ Diameter x 5-1/4″
- Service Factor = 1.0, Thermal Protection = Automatic
- No Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air Over so motor must be in air-stream. 5KCP39UNB764T
