New

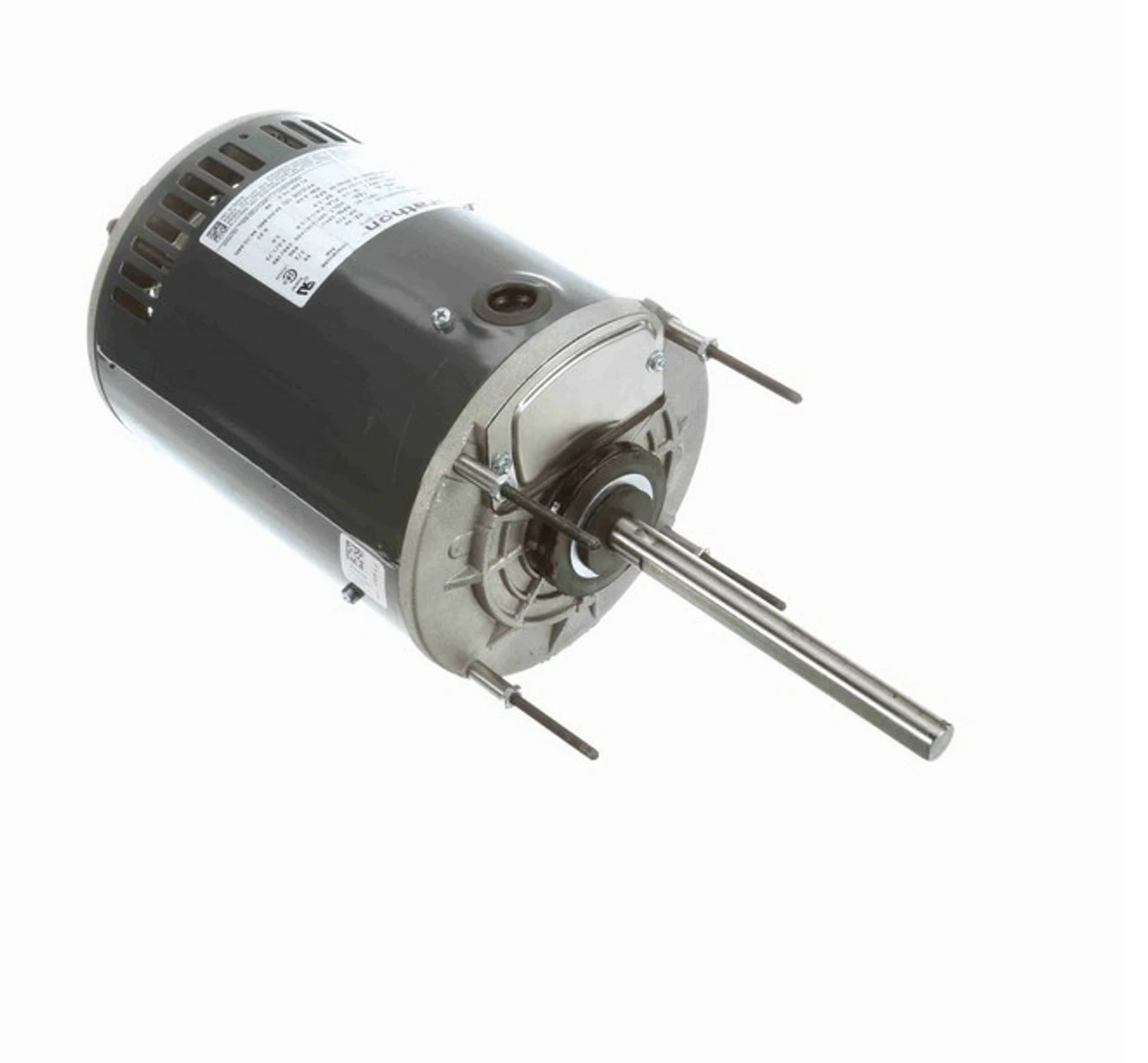

X207 Marathon 3/4 Hp 208-230/460V 1075 RPM OPAO (no Base) 56Z Frame Condenser Fan Motor

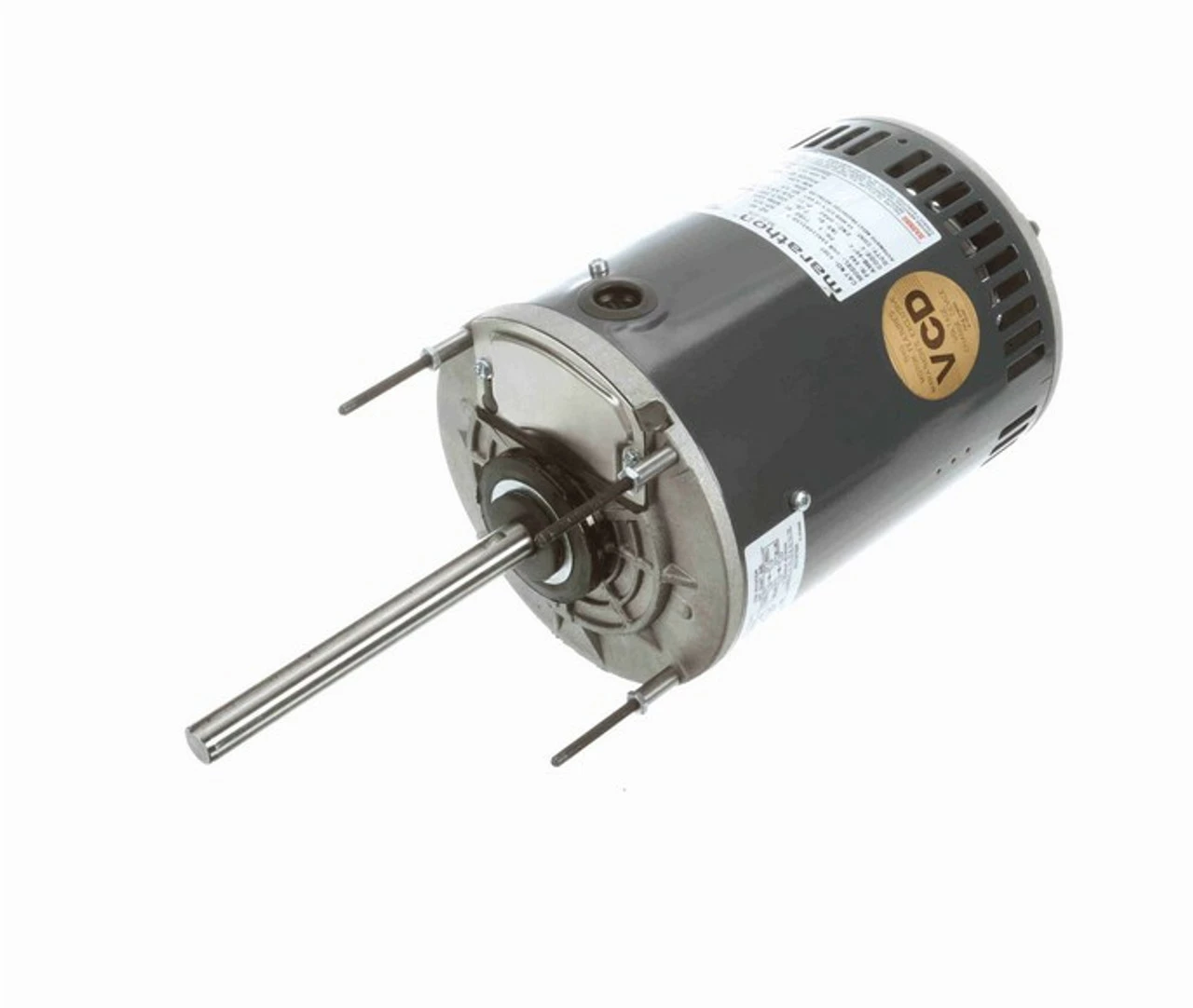

X207 Marathon 3/4 Hp 208-230/460V 1075 RPM OPAO (no Base) 56Z Frame Condenser Fan Motor - Image 2

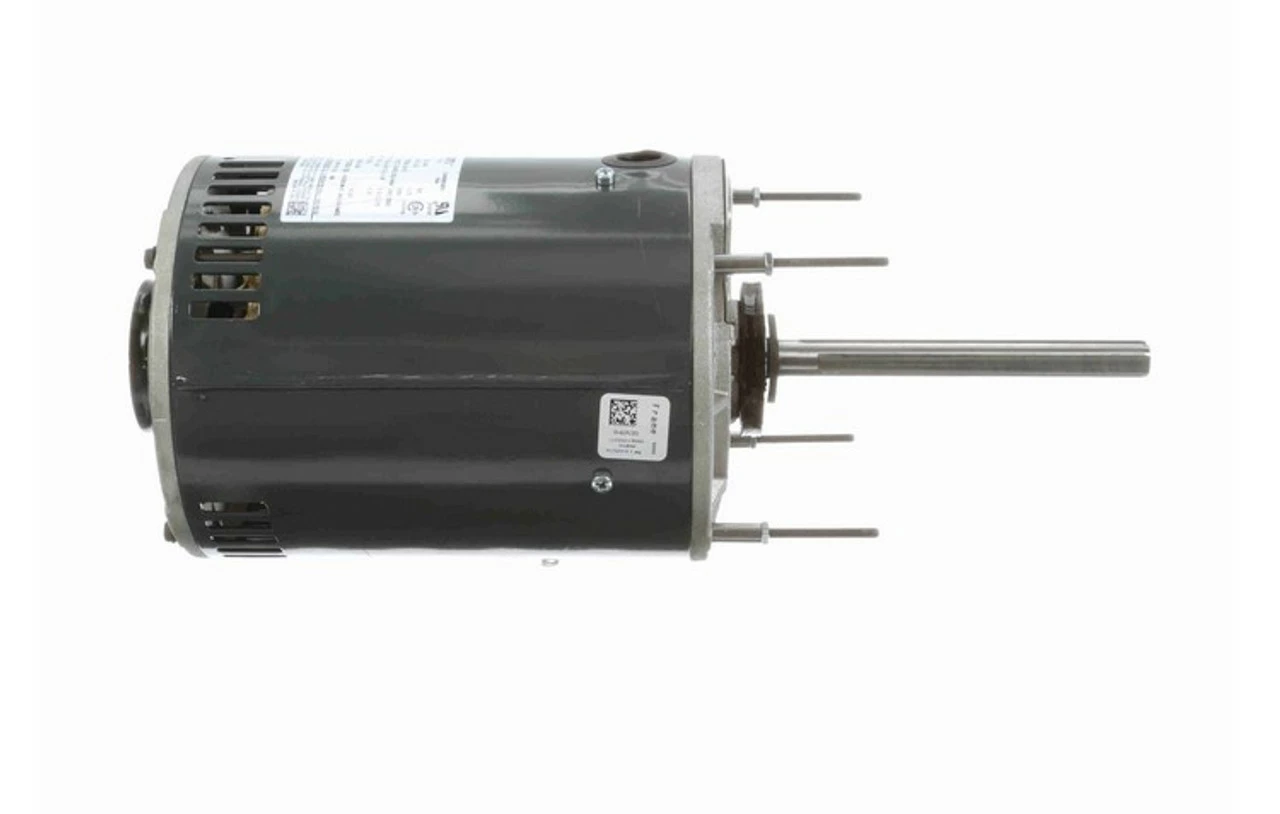

X207 Marathon 3/4 Hp 208-230/460V 1075 RPM OPAO (no Base) 56Z Frame Condenser Fan Motor - Image 3

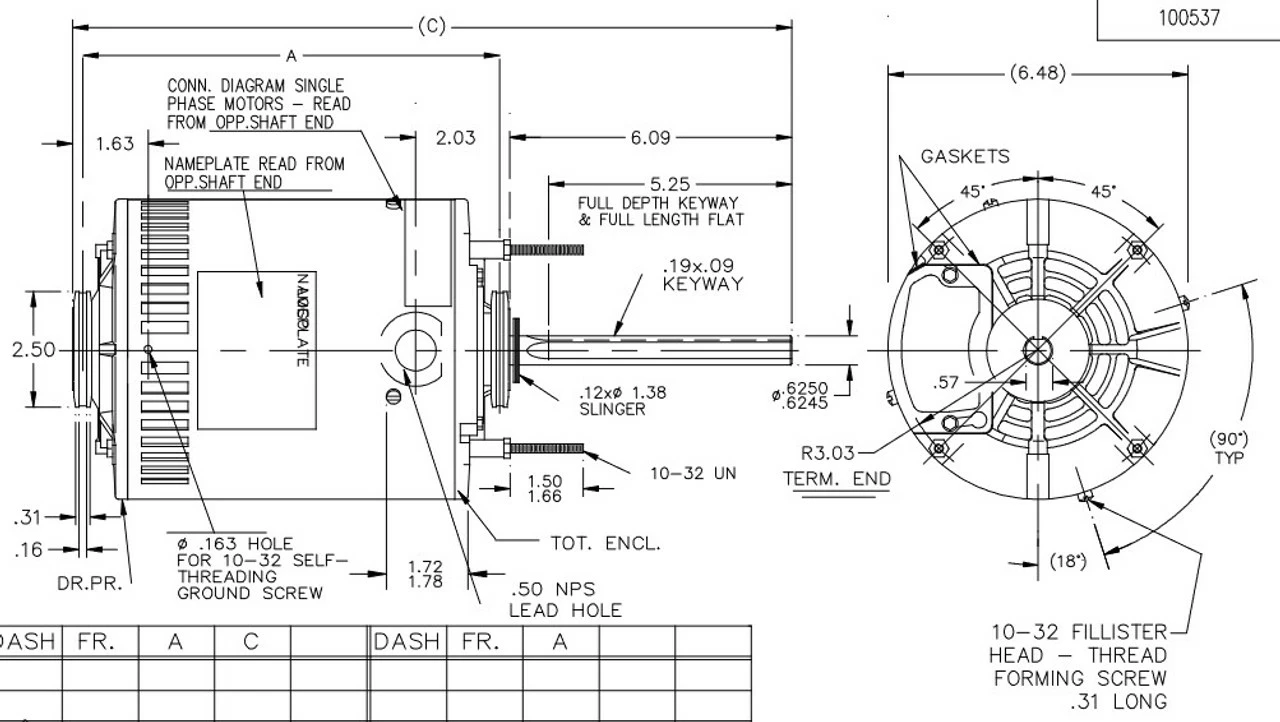

X207 Marathon 3/4 Hp 208-230/460V 1075 RPM OPAO (no Base) 56Z Frame Condenser Fan Motor - Image 4

X207 Marathon 3/4 Hp 208-230/460V 1075 RPM OPAO (no Base) 56Z Frame Condenser Fan Motor

Original price was: $351.00.Current price is: $95.99.

SKU: ZWXLY 1698667787 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Marathon

7 days return and exchange
Online customer care, always here for you.
7 Days of Hassle-Free Returns
The quality solution for all your needs.

Description
Reviews (0)

3/4 hp 1075 RPM, 3.9-3.6/1.8 amps, 208-230/460 Volts 60 Hz, Permanent Split Capacitor (PSC)
NEMA 56Z Frame Keyed Shaft 5/8″ Diameter x 6″
Service Factor = 1.0, Thermal Protection = Automatic
No Base, Reversible, Ball Bearings, Class B insulation
1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056A11O5311
