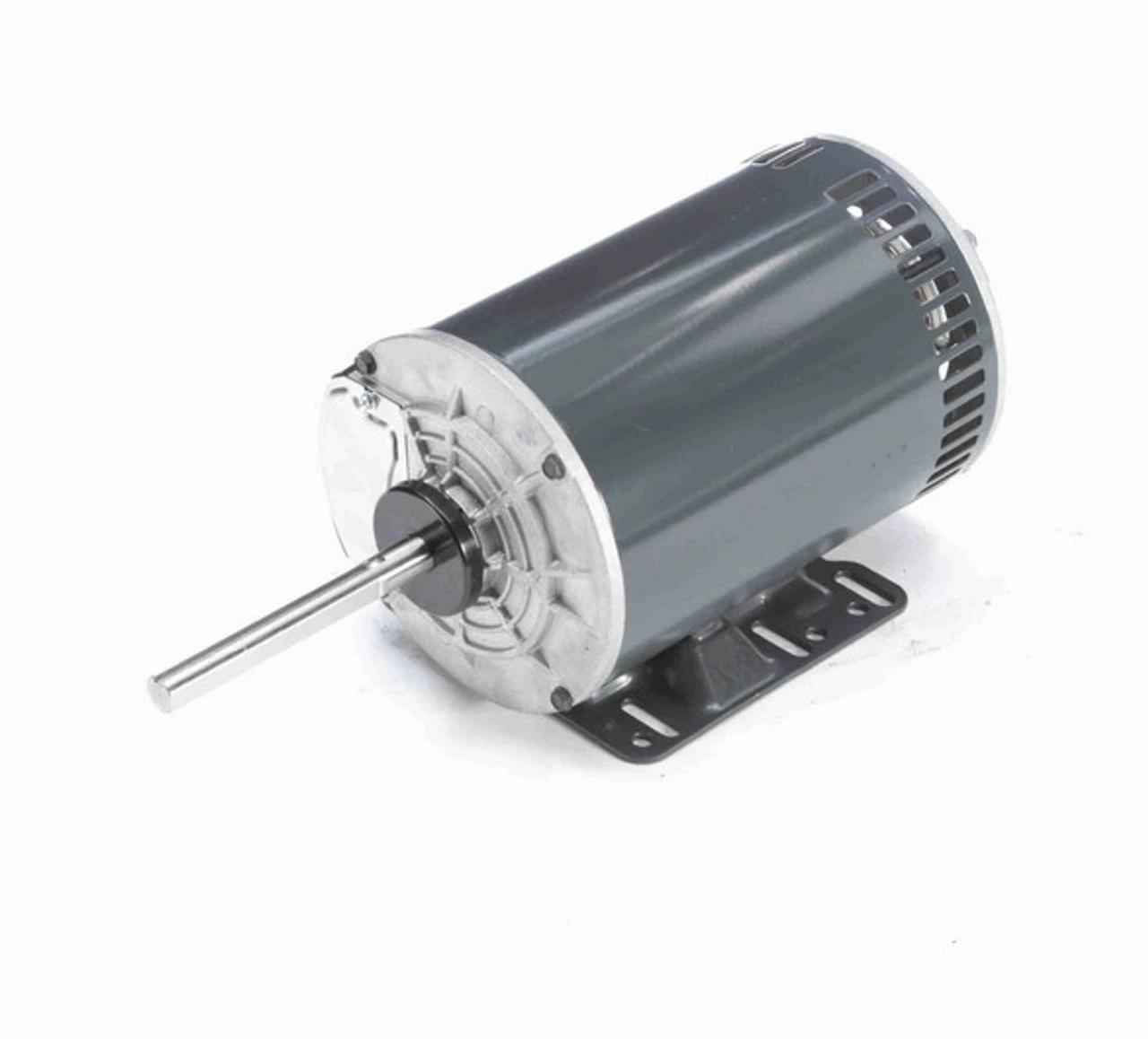

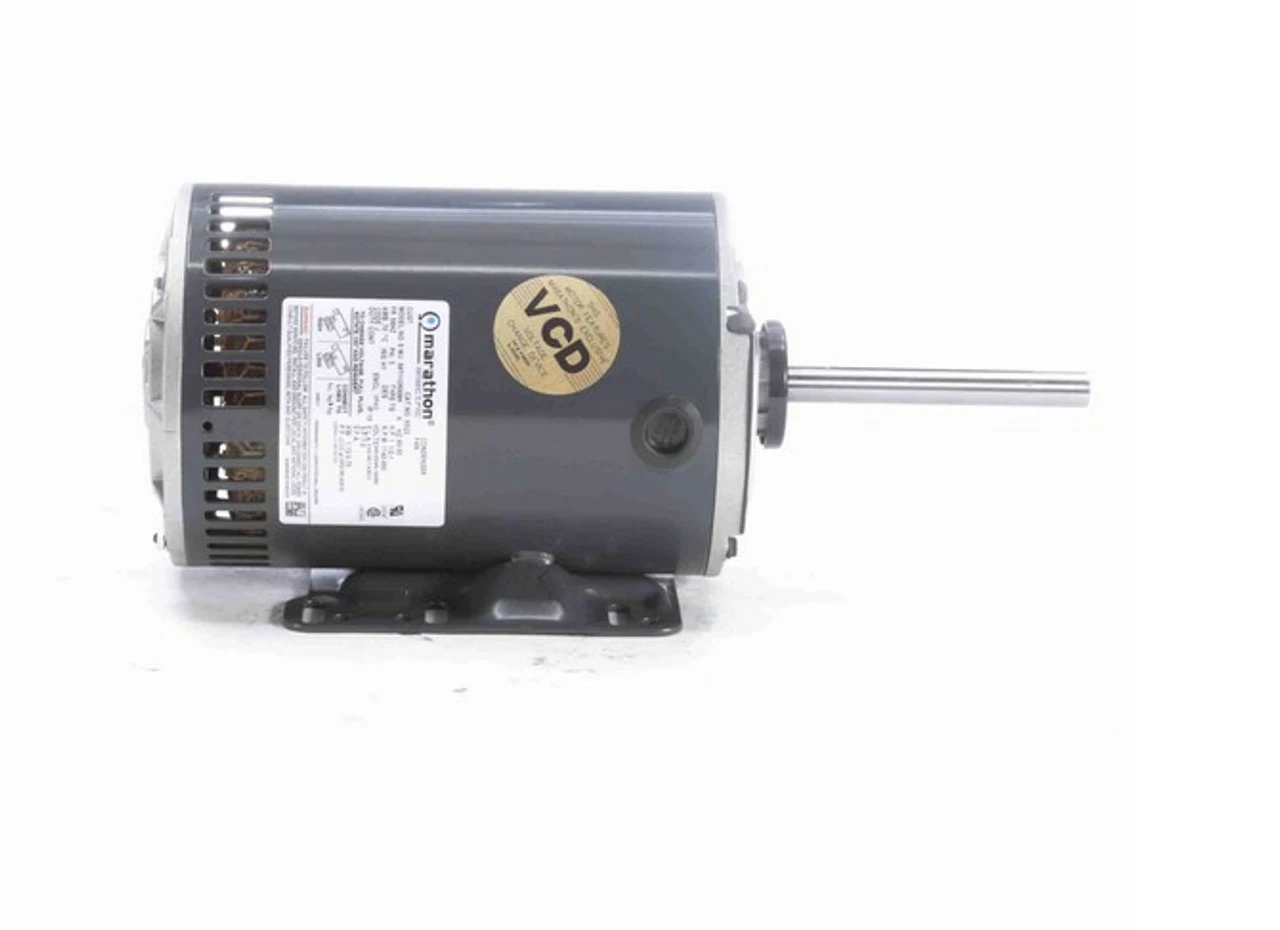

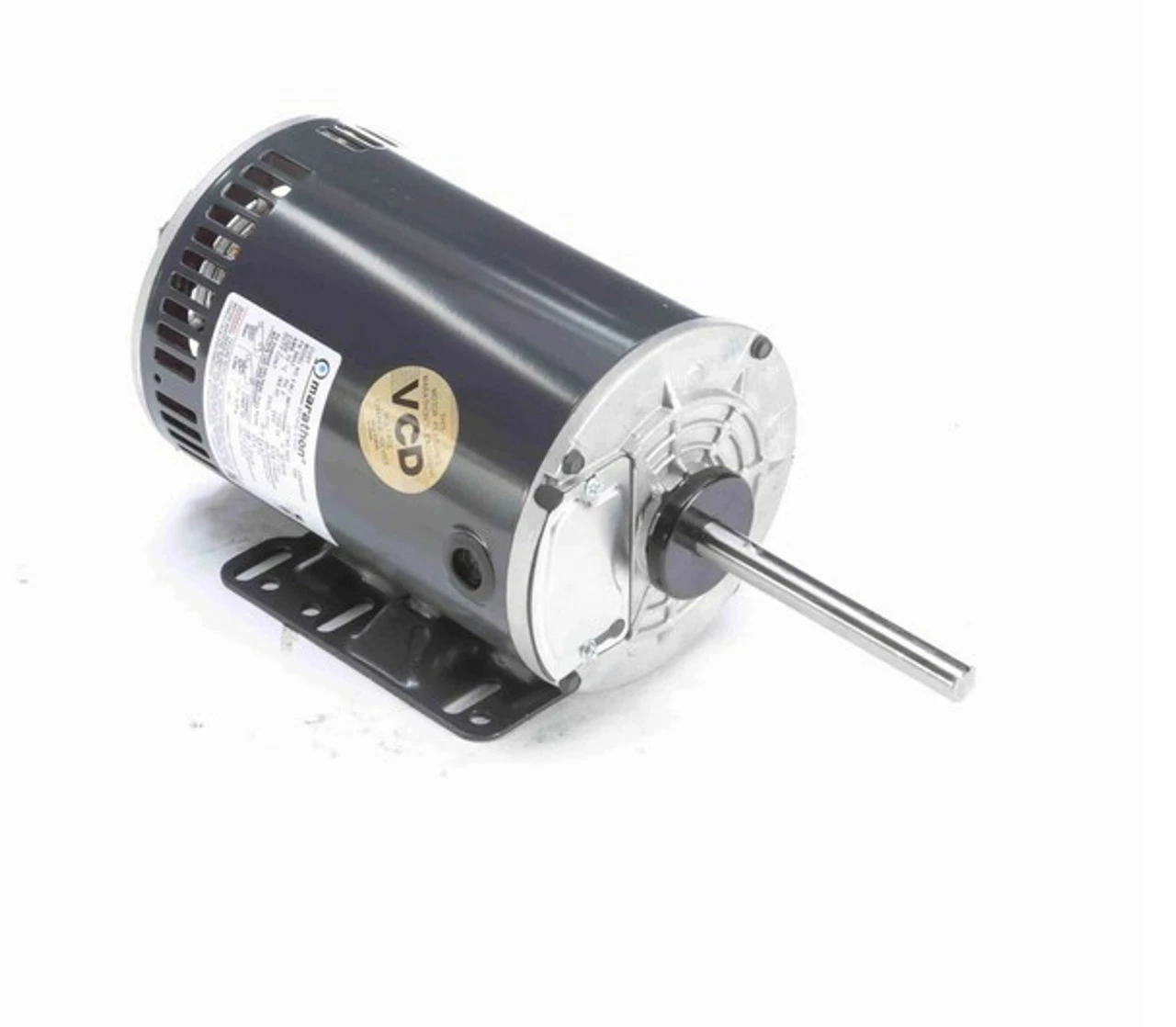

X523 Marathon 1 1/2 Hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor
Original price was: $313.00.$99.99Current price is: $99.99.
- 7 days return and exchange
- Online customer care, always here for you.
- 7 Days of Hassle-Free Returns
- The quality solution for all your needs.
- 1 1/2 hp 1140 RPM, 5.4-5.4/2.7 amps, 208-230/460 Volts 60 Hz, 3-Phase

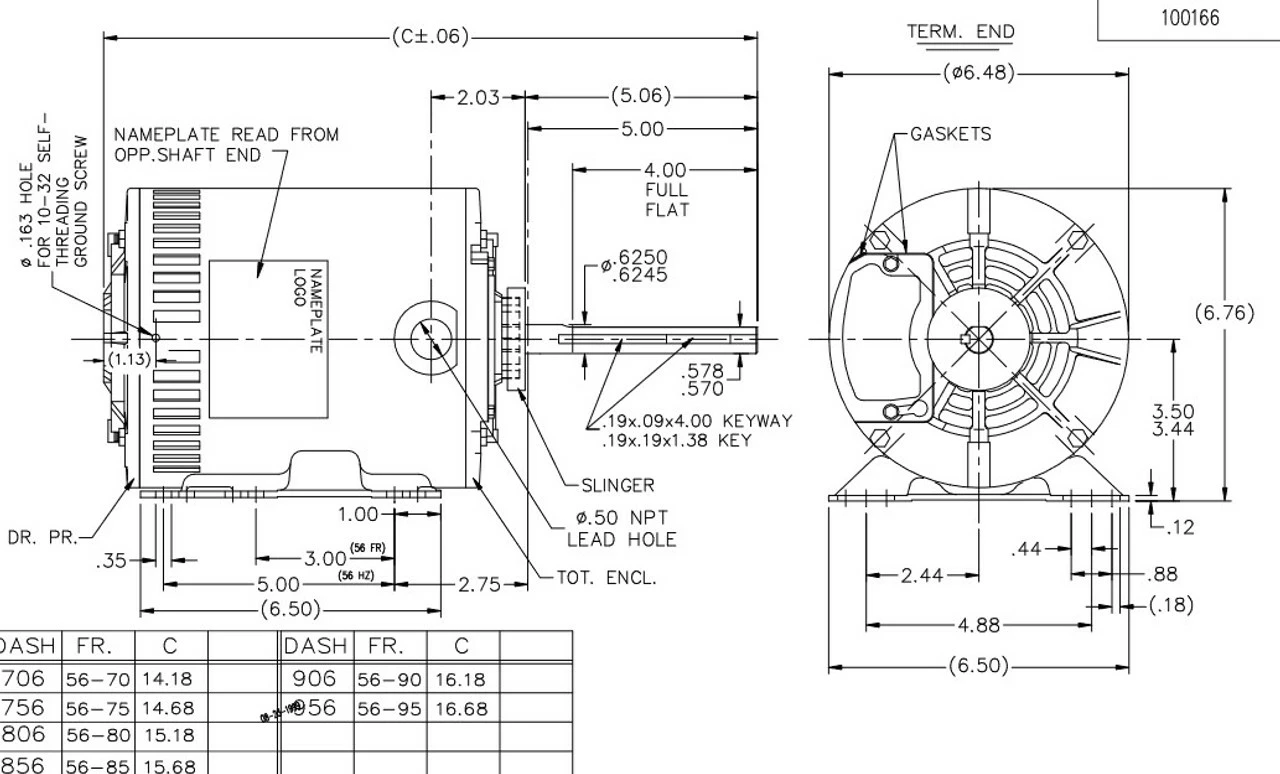

- NEMA 56HZ Frame Keyed Shaft 5/8″ Diameter x 5″
- Service Factor = 1.0, Thermal Protection = Automatic
- Rigid Base, Reversible, Ball Bearings, Class H insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream.
Marathon Model: 056T11O5306
Replaces Century H768
