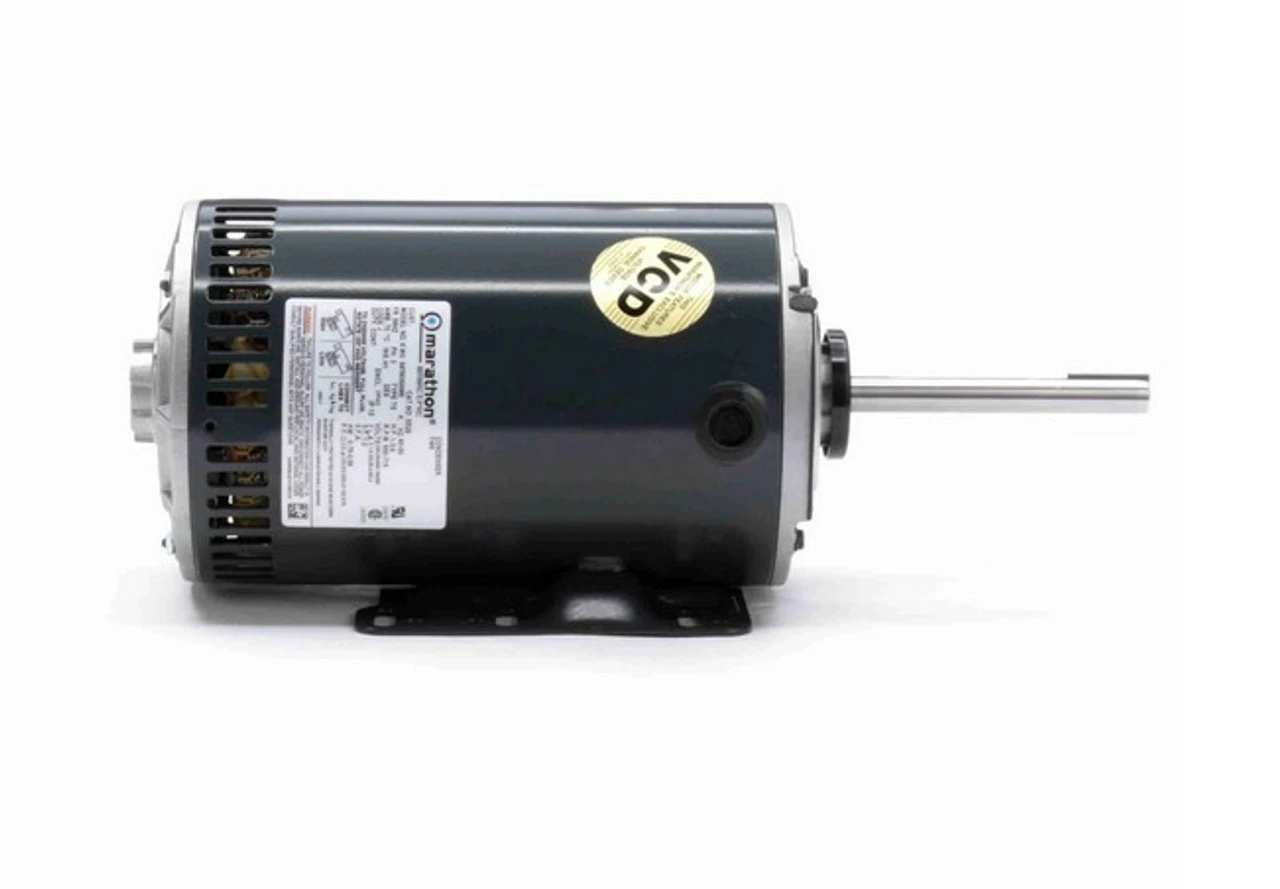

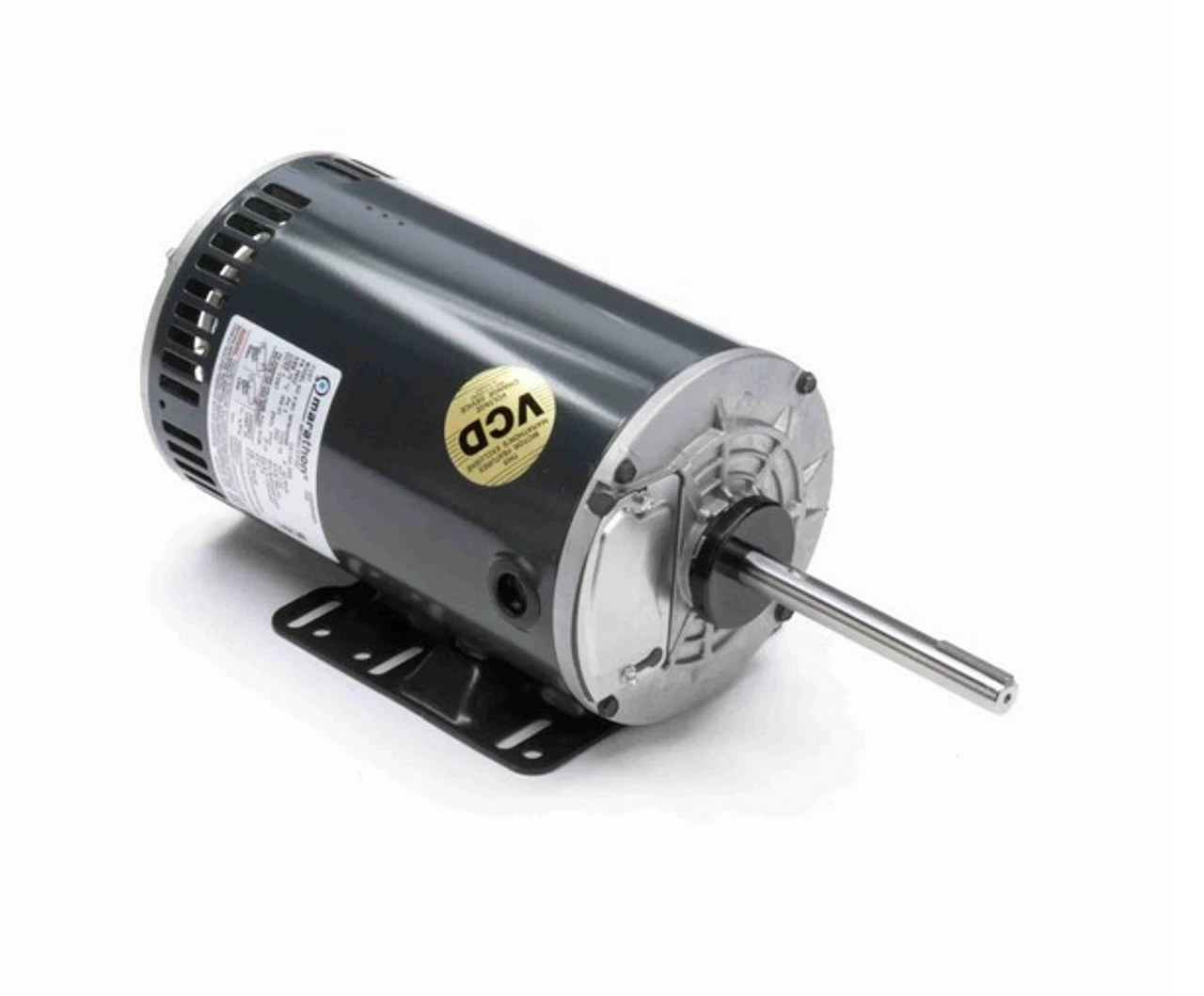

X528 Marathon 1 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor
Original price was: $389.00.$95.99Current price is: $95.99.
- 7 days return and exchange
- Online customer care, always here for you.
- 7 Days of Hassle-Free Returns
- The quality solution for all your needs.
- 1 hp 825 RPM, 5.1-5.3/2.7 amps, 208-230/460 Volts 60 Hz, 3-Phase

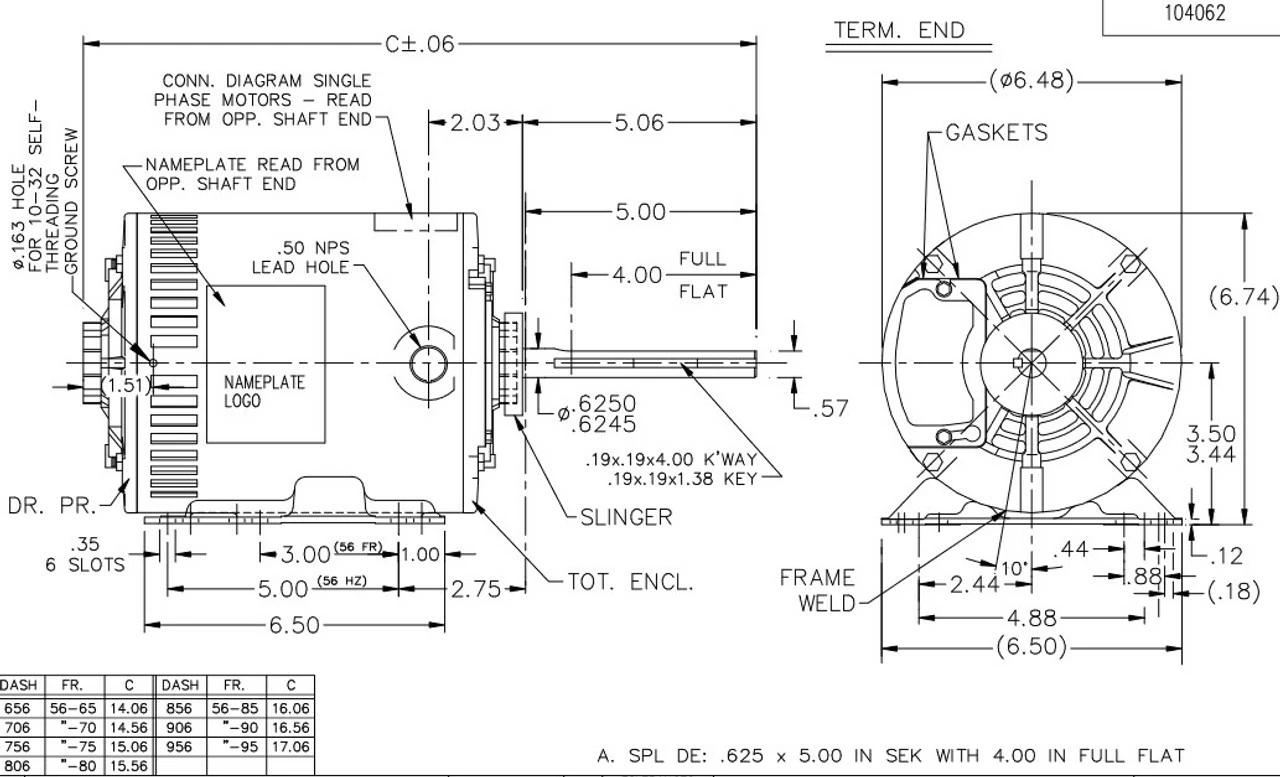

- NEMA 56HZ Frame Keyed Shaft 5/8″ Diameter x 5″
- Service Factor = 1.0, Thermal Protection = Automatic
- Rigid Base, Reversible, Ball Bearings, Class H insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T8O5306
